A production mold is depreciating capital. Without structured injection mold maintenance, flash, dimension drift, and cavity damage erase the savings from cheap initial tooling — and OEMs discover problems only when field returns spike or a supplier blames “normal wear” for tools that were never maintained.
Maintenance is where mold ownership meets daily production. You may own the steel on paper, but the supplier controls whether ejector pins get greased, cooling gets descaled, or a hot tip gets replaced before it carbon-tracks your resin. Contract language without maintenance behavior is just hope.
Why maintenance is an OEM problem, not “shop floor detail”
Every shot wears parting line, pins, slides, and gates microscopically. Over tens of thousands of cycles, flash grows, dimensions drift, and cosmetic surfaces degrade. A mold quoted for 500,000 shots can fail at 120,000 if maintenance is reactive only.
Procurement pain: piece price looked great at award; year two adds sorting labor, increased scrap, and emergency mold repair billed as “damage” because logs cannot prove wear vs misuse.

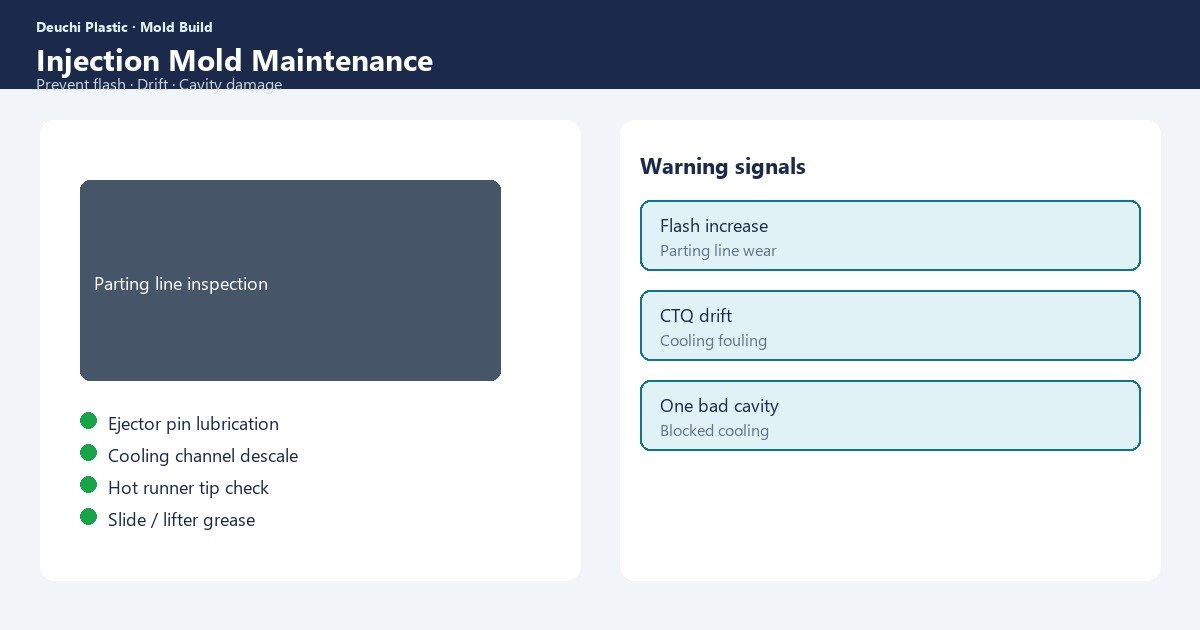

Preventive maintenance tasks
- Parting line cleaning and polish when flash first appears — not after damage
- Ejector pin lubrication, alignment check, and replacement at wear limits
- Cooling channel descale on schedule — CTQ drift often traces to fouled cooling
- Hot runner tip, heater, and thermocouple inspection per shot-count band
- Slide and lifter grease per manufacturer schedule — dry slides gall and flash
- Textured cavity cleaning without eroding VDI finish
- Shot counter logging tied to steel life estimate in original quote
- Water filter and leak check — water marks and rust are cavity killers
- Clamp force verification if flash correlates with machine change
Suggested PM cadence (adjust per tool complexity)
| Interval | Tasks |
|---|---|
| Every production shift | Visual flash check, sample CTQ spot check |
| Weekly (high volume) | Parting line wipe, ejector function, hot runner temps |
| Monthly | Pin lubrication, cooling flow check, shot count log review |
| Quarterly | Detailed mold inspection, slide wear measure, maintenance report to OEM |
| Annually / shot threshold | Descale cooling, hot half service, texture clean, spare parts audit |
High-cavitation Class A tools may need tighter intervals — define in tooling agreement, not after first quality hold.
Warning signs production is damaging the tool
| Signal | Likely cause |
|---|---|
| Gradual flash increase | Clamp wear, parting line nick, or process over-packing |
| CTQ drift across weeks | Cooling fouling, heater failure, or process creep |
| Visible pin marks worsening | Worn or misaligned ejection, wrong stroke |
| One cavity consistently bad | Blocked cooling, damaged shut-off, or gate wear in that cavity |
| Color streaks after material change | Hot tip deposit or inadequate purge procedure |
| Sink increasing on same feature | Pack pressure change or vent blockage |
| Unusual noise on open/close | Slide interference, ejector bind, missing lubrication |
Track signals in supplier quality reports — not only in mold shop logs you never see.
Wear vs damage vs engineering change
Contracts should define who pays:
- Normal wear — parting line polish, pin replacement within shot life — usually supplier during production agreement
- Damage — crash, wrong setup, foreign object — usually responsible party per investigation
- Engineering change — customer-initiated CAD revision — customer funded
Without definitions, every repair becomes a negotiation. Link to mold ownership and custody clauses.
Contract clauses for OEMs
- Maintenance log shared quarterly with shot count
- Spare parts on hand for critical pins, inserts, and hot tips — list in appendix
- Right to inspect mold in storage on reasonable notice
- Retirement criteria when repair exceeds new insert economics
- Notification within 24 hours of mold crash or production stop tied to tool
- Photo documentation before/after major mold service
Storage and idle molds
Molds idle between programs still need rust preventive, upright storage, and periodic parting line check. OEMs switching suppliers or pausing SKUs should define idle custody — molds stored in humid conditions without prep can fail tryout after “just sitting six months.”
How Deuchi handles mold care
Customer-owned tools in our custody follow documented PM schedules with logs available on request. Maintenance scope is defined before production release — not debated after flash appears on a Friday night run.
Maintenance ties to production quality records so drift is caught in data before it reaches your customer.
Repair vs replace decision tree
When flash appears, suppliers may polish parting line — valid maintenance. When shut-off land is crushed from overpack or crash, weld repair may be needed — define approval before weld without OEM sign-off. When cavity insert is gouged, replacement insert may beat repeated polish cycles.
OEM quality should receive photos on any mold service that touches parting line or cavity steel — cosmetic and dimensional CTQs can shift after aggressive repair.
Linking maintenance to supplier scorecards
Include maintenance log timeliness and unplanned mold stops in supplier reviews. A molder with great OTD but zero PM logs is a future quality incident. Pair with factory audit checklist on annual visits.
Documentation OEM quality teams should receive
Each maintenance event should log: date, shot count, cavities affected, service performed, parts replaced, before/after photos for parting line work, and technician sign-off. Quarterly summary rolls up events for OEM review — not only “maintained as needed” boilerplate.
For regulated or high-liability products, maintenance records may be requested during customer audit years after launch. Build record habit early, not under audit panic.
Emergency mold stop playbook
Define who authorizes mold pull from press, who notifies OEM, and maximum hours before root-cause note is issued. Flash storm at cavity 2 should not run three shifts while dimensions drift — stop, contain, service, re-qualify per agreed protocol.
Spare mold or duplicate steel strategy for highest-revenue SKUs reduces downtime during major repair — compare insurance and duplicate cost in annual supply review.
Integrating maintenance with mold build handoff
PM schedules should start at production release — not six months later. At mold acceptance, receiving molder should publish baseline PM plan derived from mold build tryout notes: hot tip types, slide count, texture grade, recommended lube intervals. OEM approves plan as part of production readiness checklist alongside FAI.
Tools accepted without PM baseline default to reactive firefighting — the most expensive maintenance model at volume.
Seasonal and volume ramp effects on wear
Maintenance intervals should scale with actual shot accumulation — not calendar alone. A tool idle for three months then ramped to triple shift accumulates heat history and wear faster than steady production. After idle storage, require parting line inspection and hot runner soak procedure before full-speed production.
Volume ramps also change process settings — higher pack or faster cycle may accelerate flash. Any process change that increases cavity pressure should trigger maintenance review, not only when rejects appear.
OEMs running promotional spikes or end-of-quarter builds should notify molder in advance so PM can be scheduled before the spike, not after tool damage.
FAQ
Who pays for maintenance?
Usually supplier during active production contract for normal wear; customer pays for damage from unapproved process changes, engineering revisions, or misuse.
When is mold retirement economical?
When repair exceeds new cavity insert cost or CTQs cannot be held despite process adjustment — review annually in sourcing meetings.
Should we track shot count?
Yes — compare to shot life quoted at award; exceeding estimate without PM triggers dimensional and flash risk.
Can we audit maintenance records?
Contract should allow it — especially for multi-cavity tools and long-running programs where wear accumulates invisibly until failure.
Next step: Discuss maintenance terms in your tooling and production agreement.
