Buyers awarding injection mold build China programs need visibility into milestones — not a single “8 weeks” promise on a slide. Mold build is CNC, heat treat, EDM, assembly, tryout, and correction loops; each phase has approval gates that affect launch dates, cash flow, and whether your production molder receives a tool that runs or a tool that fights every cycle.
Western OEM teams often experience China mold build as a black box: deposit sent, silence for six weeks, then photos of a shiny cavity and a request for final payment. Without milestone definitions, you cannot tell whether delay is normal finishing work or a steel mistake discovered late.
This article maps the typical workflow, what to require in your tooling PO, lead time drivers procurement teams miss, and how tryout criteria should be agreed before the first chip of steel is cut.

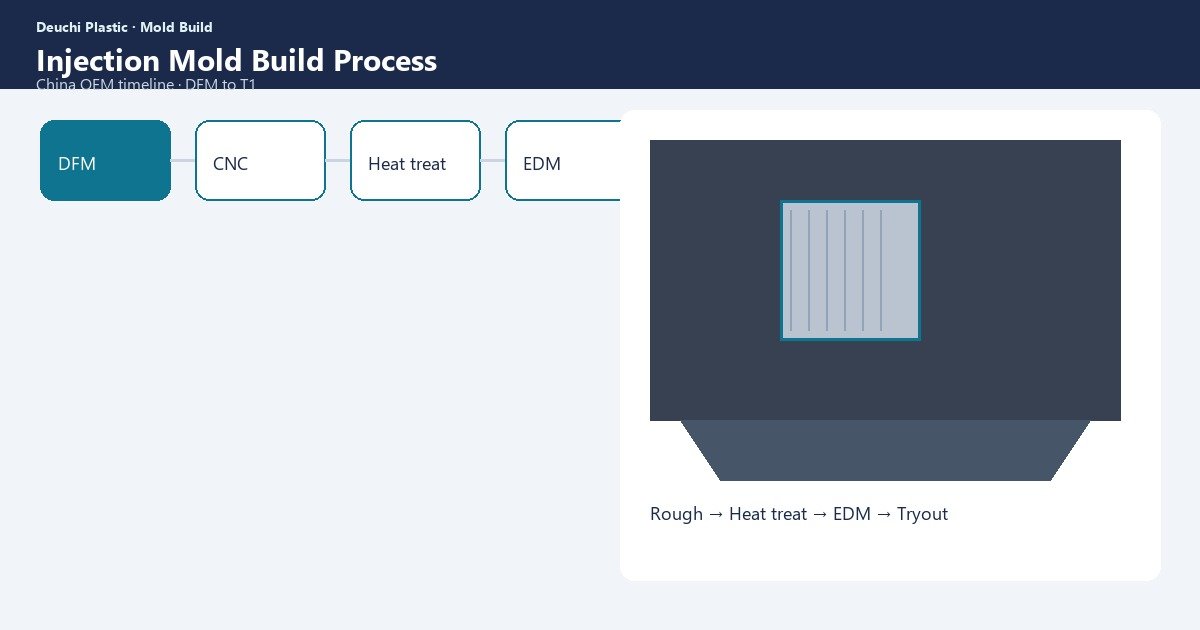

Typical mold build workflow
- DFM sign-off — geometry, steel plan, cavitation, gate, and parting line approved in writing
- Steel procurement — certified blocks ordered to grade specified in quote (P20, H13, etc.)
- Rough machining — cavities, cores, mold base plates, allowance for heat treat distortion
- Heat treat — when H13 or through-hardened steel is specified; stress relief as required
- Finishing & EDM — texture, fine shut-offs, optical polish zones, lifter and slide fit
- Assembly — slides, hot runner manifold, cooling hooks, wiring, limit switches
- Spotting and fit — parting line contact, slide clearance, ejector stroke
- T0 tryout — first shots, short-shot study, flash check, initial dimensions
- T1 corrections — engineering changes within agreed iteration scope
- Pre-shipment inspection — sample parts, dimension report, spare list, mold marking
Progress should be documented at each gate — photos, steel mill certs, hardness readings, or signed milestone reports reduce disputes if tryout fails. Treat mold build like any other capital project: defined deliverables per payment tranche.
Week-by-week expectations (indicative, not guaranteed)
| Phase | Typical duration | What you should receive |
|---|---|---|
| DFM + design release | 1–2 weeks | Written sign-off package, mold layout |
| Rough machining | 2–3 weeks | Progress photos, steel cert copies |
| Heat treat + finish | 2–4 weeks | Hardness report if applicable |
| EDM / texture / polish | 1–3 weeks | Texture sample or polish plaque if specified |
| Assembly + T0 | 1–2 weeks | T0 samples, tryout notes |
| T1 loops | 1–3 weeks | Updated samples, dimension report |
Complex multi-cavity hot runner tools sit at the long end. Simple single-cavity P20 tools can compress — but only if DFM was clean and material grade was frozen early.
What to require in mold build PO
- Steel certification matching quote (grade, hardness where applicable, mill cert)
- Progress photos or milestone sign-off at rough and finish stages
- Included T0 and T1 iteration count; change-order rate for extras
- Spare component list — ejector pins, sprue bushings, hot tips, inserts, water fittings
- Mold marking with your company name and part number on the plate
- Tryout report with sample parts and key dimensions at T0/T1
- Hot runner wiring diagram and heater spec if applicable
- Export packaging standard — rust preventive, crate, lift points
- Corrective action process if T1 fails CTQs within scope
Align custody and export terms with our mold ownership guide before first deposit. Payment milestones should map to deliverables — not calendar dates alone.
Steel verification: non-negotiable on production tools
Steel fraud — substituting lower-grade material for quoted H13 or pre-hard P20 — is a known risk in global tooling supply chains. Require mill certificates traceable to heat numbers on the mold plate. On critical programs, mid-build verification before final EDM saves catastrophic tryout failure.
If your quote says H13 for abrasive glass-filled nylon, the PO should say the same, and the cert should match. “Or equivalent” language without definition is where scope erodes.
Lead time drivers
| Factor | Typical effect |
|---|---|
| Multi-cavity + hot runner | +2–4 weeks vs single cold runner |
| Deep VDI texture or optical polish | Extra EDM and bench time |
| Multiple side actions / hydraulics | Fit, debug, and commissioning time |
| CNY holiday window | +2–3 weeks if PO overlaps January–February |
| Customer late DFM response | Clock stops — not supplier delay |
| Product CAD change after sign-off | Re-work loops, possible re-cut |
| Texture approval cycles | Multiple sample iterations |
Plan launch with our lead time planning guide and build buffer before marketing commit dates. If SOP is immovable, reverse-plan mold PO date from tryout + production release + FAI — not from when sales closed the deal.
T0 vs T1: define success before tryout
T0 is discovery — short shots, fill pattern, basic dimensions, flash assessment. T1 is correction toward production intent — CTQs trending toward spec, cosmetic acceptance against agreed standard, process window documented.
OEM conflict often comes from calling T0 “failed” when the supplier expected dimensional tuning in T1. Define in the PO:
- Which dimensions are T0 informational vs T1 contractual
- How many correction loops are included
- Who owns material cost for tryout shots
- Whether production molder must witness tryout
Link tryout expectations to first article inspection criteria your quality team will enforce at production release.
Mid-build audit: when it pays off
A checkpoint after rough machining confirms steel grade, cooling channel placement, and slide orientation before final EDM. Catching a wrong steel insert or blocked cooling line at mid-build costs days; catching it at T0 costs weeks and launch credibility.
Audits are not mistrust — they are capital protection. Many Western OEMs audit on first China tool, then skip on tool two and regret it. Define audit notice and scope in the tooling agreement; bring engineering, not just procurement.
Handoff to production molder
Mold build does not end at T1 photos. The receiving molder needs setup sheets, water diagram, hot runner settings, and sample correlation. If mold build and production are split vendors, budget receiving tryout time — see mold transfer guide.
How Deuchi runs mold build
Programs tie mold build to production readiness — same engineering team that reviewed DFM owns tryout criteria and handoff to production. Customers receive itemized quotes and milestone visibility, not lump-sum black boxes.
When mold build and contract manufacturing are one program, tryout happens on the production press that will run the tool — eliminating “built perfect elsewhere, fights our floor” surprises.
Communication norms with China mold build shops
Time zone gaps and holiday calendars cause more perceived delay than machining capacity. Define a weekly update cadence in the PO — even a short milestone email beats silence. Chinese New Year shutdown is predictable; PO dates crossing January–February need explicit schedule language.
Language: require critical approvals (steel release, heat treat release, texture approval) in writing with photos. Verbal OK on WeChat does not survive personnel change on either side.
Translation risk hits technical terms — “pre-hard” vs “through-hard,” “texture grade” vs “polish level.” Attach sketches and reference photos to reduce ambiguity.
FAQ
Should mold build and production be one PO?
Often yes for single-point accountability; split only when you already own steel and need tryout or tuning at a new molder. Split programs need explicit interface documents between build shop and molder.
Can we audit during build?
Yes — mid-build checkpoint is standard on complex tools. Define visit notice, photo rights, and non-disclosure in the tooling agreement.
What if T1 fails dimensional targets?
Within included iteration scope, supplier corrects process and minor steel; out-of-scope product changes are change orders with revised timeline. Dispute prevention is defining CTQs and loops before deposit.
Should we witness tryout in China?
Recommended for first tool with a new partner or any Class A cosmetic program. Travel cost is small compared to one wrong gate decision left uncorrected.
